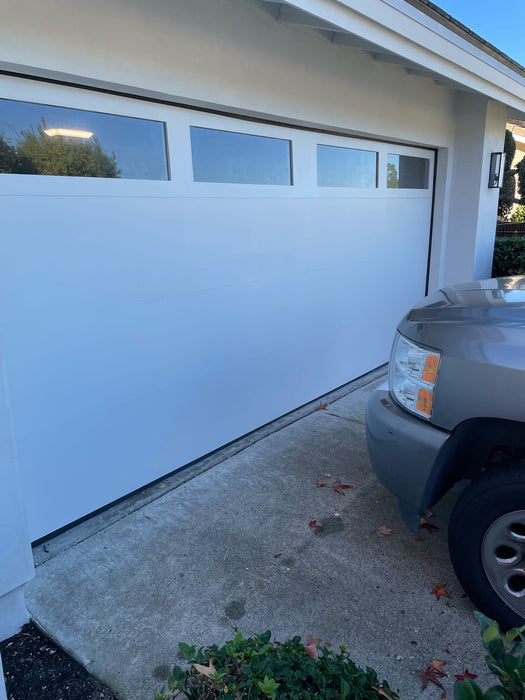

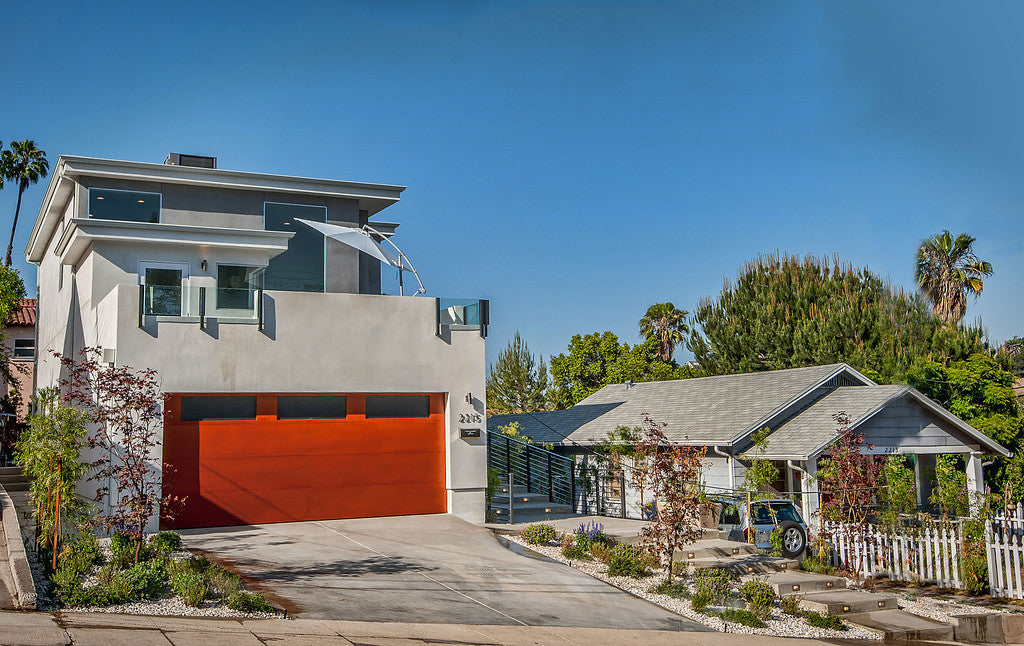

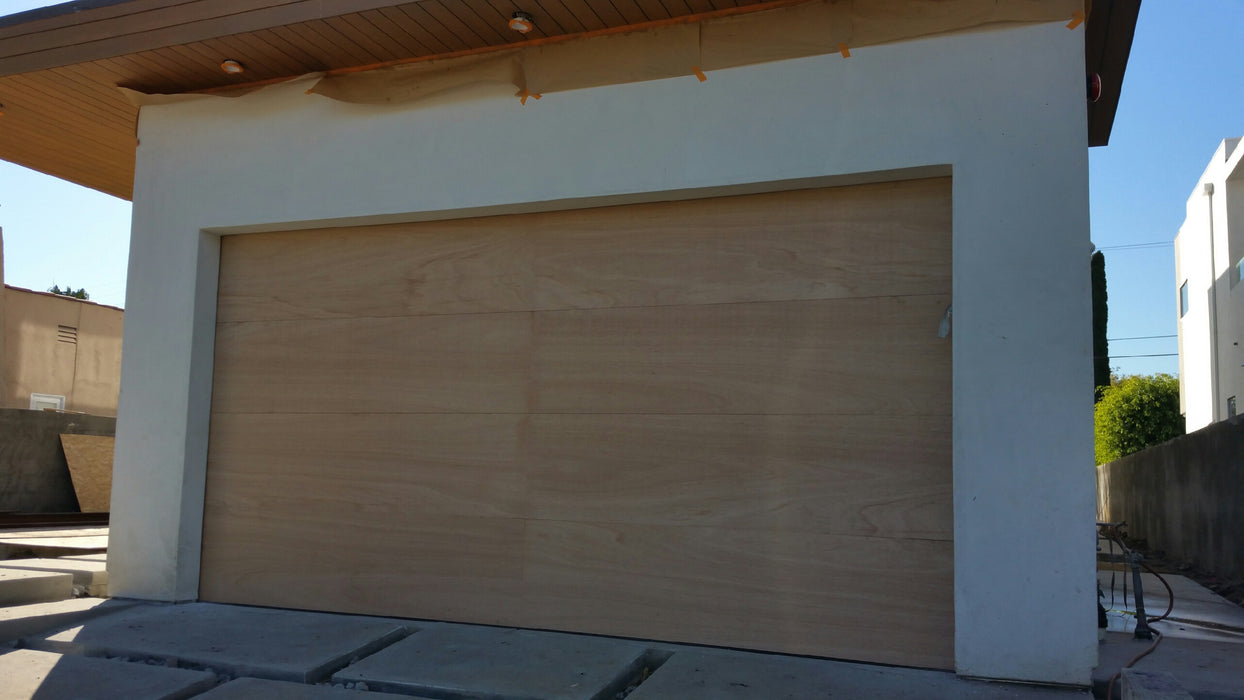

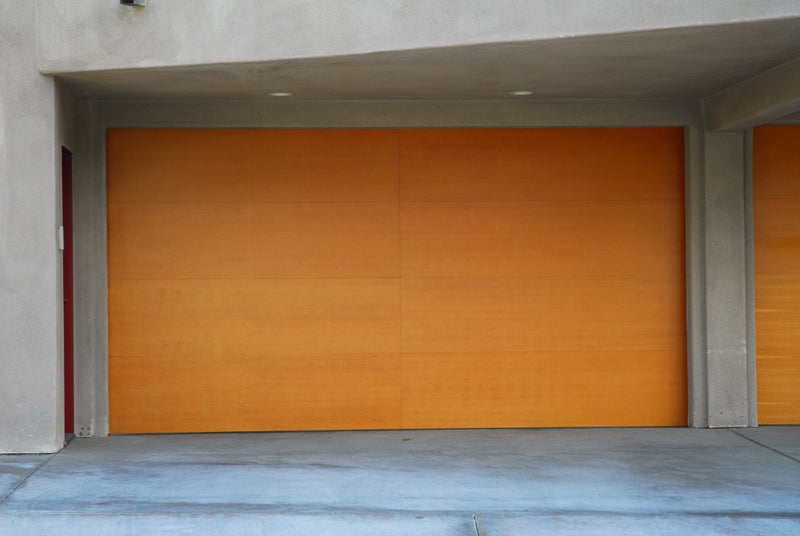

Lucas - Modern Flush Style Custom Wood Garage Door

Lucas - Modern Flush Style Custom Wood Garage Door

by Lux Garage Doors

- Custom Sizes Available
- Garage Doors are delivered complete including tracks, springs & hardware
- Shipping to any residential or commercial address nationwide

Lucas
Modern Style Custom Wood Garage Door

(Optional Top Windows for Additional Cost)

Sizes
(W x H)

Paint Grade
(Available Primed at additional Cost)

Western Red Cedar

Mahogany

8' x 7'

$2,590

$4,470

$3,150

9' x 7'

$2,780

$4,890

$3,340

10' x 7'

$2,850

$5,450

$4,170

12' x 7'

$4,220

$7,580

$5,390

16' x 7'

$4,690

$8,460

$5,640

18' x 7'

$5,624

$9,650

$6,680

8' x 8'

$2,730

$4,570

$3,480

9' x 8'

$2,936

$5,070

$3,970

10' x 8'

$2,975

$5,640

$4,250

12' x 8'

$4,590

$7,850

$5,650

16' x 8'

$4,890

$8,690

$5,860

18' x 8'

$5,880

$9,890

$6,990

Our unique designs, quality and industry leading prices set Lux Garage Doors apart from our competitors. Our Modern Wood Doors Collection incorporates handcrafted wood enhancing its classic appearance. This collection combines the modern look of sectional doors with a classical appearance of swinging carriage house style wood doors. Lux's wood garage doors offer prominent features including, vertical grain lumber, all sections are reinforced with a heavy duty struts Support in the back of each of section giving the section extra strength and durability to last for many years.

Specifications:

  1. Heavy-duty 1-5/8" section thickness.
  2. Three-layer construction with polystyrene sandwiched between interior and exterior boards. Interior Luan. R-value 5.9.
  3. Wood Species: Luan
  4. Wood Type: Paint-grade or Stain-grade
  5. Wood Color: Unfinished
  6. Optional Single Pane Clear Glass (1/8" Thick) for an additional charge of $300.00.
  7. Custom Capabilities: Size, Glass
  8. Warranty: All Lux Custom Wood Garage Door Series including their hardware are warranted for 1-year.
  9. Energy-efficient insulation which is applied using Polystyrene Insulation in the back of the wood panel
  10. Packaging: Loose

Track and Hardware Details:

  1. Spring Type: Torsion, Oil Spring
  2. Track Size: 2" Flag & Jamb Bracket Jambs
  3. Track Mount: Bracket
  4. Track Lift: Standard (High Lift or Low-Lift available)
  5. Track Radius: 12" or 15"
  6. Packaging: Loose
  7. Rollers: Heavy-duty steel ball bearing rollers with nylon tires provide quiet operation
  8. No lock hole

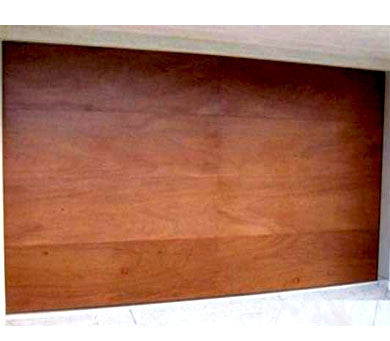

Luan Wood Detail Picture:

Construction Detail Picture:

Useful Links

- Product Brochure
- Wood Care and Maintenance

Plan your garage door project

Garage door options & specifications
Brand
Lux Garage Doors

Check the product description and selected configuration for included panels, tracks, hardware and opener components. Freight, taxes, availability and lead times will be confirmed with your quote.

How to measure your garage door

Use a tape measure and record everything in inches. Measure the finished opening from inside the garage. These measurements help us prepare your quote; have a qualified installer confirm them before ordering.

Garage opening measurement diagramA is the opening width, B is the opening height, C is clearance above the opening, and L and R are clearances to the left and right. Backroom is measured from the opening into the garage and is described below. A · Opening widthB · HeightC · HeadroomLRInside view · Diagram is not to scale
  1. A — Opening width. Measure between the finished left and right jambs at the top, middle and bottom. Record all three if they differ.
  2. B — Opening height. Measure from the finished floor to the underside of the header at the left, middle and right. Note any slope or uneven floor.
  3. L and R — Sideroom. Measure from each side of the opening to the nearest wall, post or obstruction. Record the left and right clearances separately.
  4. C — Headroom. Measure from the top of the opening to the lowest ceiling obstruction, such as a beam, pipe, light or opener.
  5. Backroom. Measure straight back into the garage from the opening to the nearest obstruction along the planned track and opener path. Include beams, ducts and shelving.
  6. Send your notes. Include these measurements, your delivery ZIP code, door model and photos of the opening, framing and ceiling with your quote request.

Before ordering: Track, lift, spring and opener choices determine the required clearances. Roll-up and specialty doors require their specific manufacturer drawings; there is no single clearance that fits every door.

Measure only from a safe position. Do not loosen or adjust springs, cables, brackets or tracks. Have a garage-door professional handle those components.
