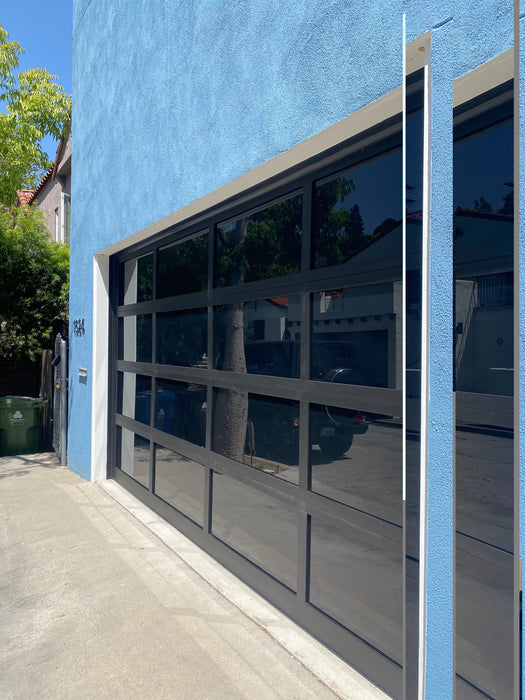

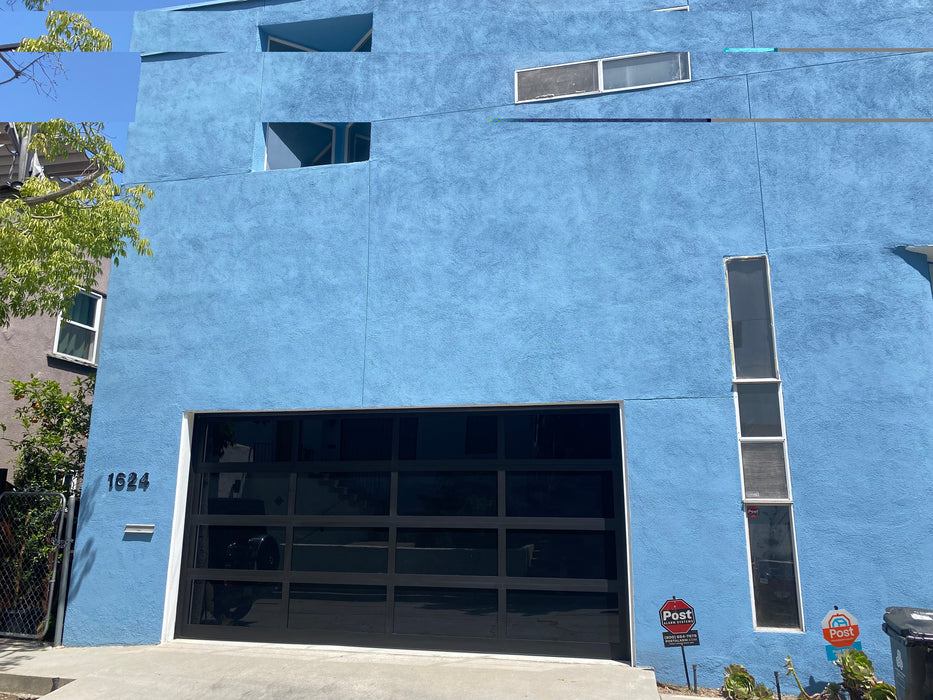

Contemporary Black Aluminum & Black Laminate (Privacy) Glass Garage Door

Contemporary Black Aluminum & Black Laminate (Privacy) Glass Garage Door

by Lux Garage Doors

- Custom Sizes & Other Aluminum Colors Available
- Garage Doors are delivered complete including tracks, springs & hardware
- $795 Flat Rate Shipping to any residential or commercial address nationwide
* $195 for each additional door
* Shipments to Alaska and Hawaii, please contact us for a quote

Black Anodized Aluminum & Black Laminate Glass Garage Door

Width

7' High

8' High

8'

$4,290

$4,639

9'

$4,644

$4,984

10'

$5,098

$5,590

12'

$6,572

$6,690

16'

$8,500

$8,890

The perfect choice to modernize any home the glass garage doors not only transforms garages; it can also be used as an interior loft partition or a versatile patio door to seamlessly merge indoor and outdoor living spaces. At the press of a button, the garage doors are automatically raised, allowing traffic to flow during gatherings. Closed, they create an attractive wall of windows, adding a panoramic view to any living space.

Aluminum Color Options



Clear Anodized Aluminum (Natural Color)

White Powder Coat Aluminum

Black Anodized Aluminum

Dark Bronze Anodized Aluminum

Other colors are also available

Specifications:

  1. Aluminum Finish: Black Anodized Aluminum
  2. Frame Thickness: 2-1/8" Rust-proof Aluminum Frame
  3. Frame Color Options: Natural Anodized Aluminum, Powder Coat White. (Other Colors are available for additional cost: Anodized Dark Bronze, Anodized Black, Powder Coat Black and Powder Coat Brown)
  4. Glass Thickness: 1/4" Dual Pane Black Laminated (Privacy) Glass
  5. Custom Capabilities: Size, Finish, Glass
  6. Maintenance Level: Low
  7. Packaging: Loose
  8. Project Type: New construction and replacement

Track and Hardware Details:

  1. Spring Type: Torsion, Oil Spring
  2. Track Size: 2" Flag & Jamb Bracket Jambs
  3. Track Mount: Bracket
  4. Track Lift: Standard (High Lift or Low-Lift available for additional cost)
  5. Track Radius: 12" or 15”
  6. Packaging: Loose
  7. Rollers: Heavy-duty steel ball bearing rollers with nylon tires provide quiet operation
  8. No lock hole

Plan your garage door project

Garage door options & specifications
Brand
Lux Garage Doors

Check the product description and selected configuration for included panels, tracks, hardware and opener components. Freight, taxes, availability and lead times will be confirmed with your quote.

How to measure your garage door

Use a tape measure and record everything in inches. Measure the finished opening from inside the garage. These measurements help us prepare your quote; have a qualified installer confirm them before ordering.

Garage opening measurement diagramA is the opening width, B is the opening height, C is clearance above the opening, and L and R are clearances to the left and right. Backroom is measured from the opening into the garage and is described below. A · Opening widthB · HeightC · HeadroomLRInside view · Diagram is not to scale
  1. A — Opening width. Measure between the finished left and right jambs at the top, middle and bottom. Record all three if they differ.
  2. B — Opening height. Measure from the finished floor to the underside of the header at the left, middle and right. Note any slope or uneven floor.
  3. L and R — Sideroom. Measure from each side of the opening to the nearest wall, post or obstruction. Record the left and right clearances separately.
  4. C — Headroom. Measure from the top of the opening to the lowest ceiling obstruction, such as a beam, pipe, light or opener.
  5. Backroom. Measure straight back into the garage from the opening to the nearest obstruction along the planned track and opener path. Include beams, ducts and shelving.
  6. Send your notes. Include these measurements, your delivery ZIP code, door model and photos of the opening, framing and ceiling with your quote request.

Before ordering: Track, lift, spring and opener choices determine the required clearances. Roll-up and specialty doors require their specific manufacturer drawings; there is no single clearance that fits every door.

Measure only from a safe position. Do not loosen or adjust springs, cables, brackets or tracks. Have a garage-door professional handle those components.
